Fixture Anatomy

anatomy

Perfect_Pitch LEDs

Achieve an uncompromised layer of architectural lighting at any intensity through LED spacing that never change with the intensity. This means no hot-spots and imaging when paired with the Milky lens.

Scout_Drive

A patent pending circuit design delivers 3 separate intensities within a single engine. One engine, one pitch is the only way to simply and brilliantly bring a vision to reality.

Scout_Lock

Developed with a straightforward installation process in mind, engine connectors quickly lock together. No tools are necessary even when housing in the Scout Select Channel.

Scout_Engine

Rigid boards Plug and Play together.

Cuttable and field trimmable to the inch.

Mounting Screws

No more double sided tape!

Scout’s Rigid Engines are held firmly in place with screws.

Mounting Clip

Scout’s mounting clip sits flush when installed. Once installed you’ll never see it again!

Also comes in Magnetic mounting

Heat Sink

The proprietary design of the scout fixtures keeps the LEDs right over the aluminum. No double sided tape to interfere with heat transfer.

We aim to keep your lights cool.

Fixture

Designed from the ground up to be a module system.

Each fixture is 100% custom to you.
Pre assembled and cut to the inch

We can powder coat to any finish you desire.

Lens + Optics

Scout offers multiple lens options for you.
Frosted lens for maximum output, Milky lens for visible hot-spot free illumination and a 10 degree grazer to make those textured walls pop.

Scout_Drive One Engine - Three Intensities

2.5

2.5 Watts / Foot
450 Lumens / Foot
180 Lumens / Watt

5.0

5.0 Watts / Foot
750 Lumens / Foot
150 Lumens / Watt

10.0

10.0 Watts / Foot
1,250 Lumens / Foot
120 Lumens / Watt

*Above metrics represent Basic Fixture

Quick Specs

R9

80+

CRI

90+

Binning

+/- 200K

McAdam

3 Step

Efficacy

180 LM/W

Warranty

5 Years

american flag coverted converted nverted

American Made

Patent Pending

lockvector

Certified

Blog_Labels_ETLlisted

Thermals

snowflake winter shape_318 27531

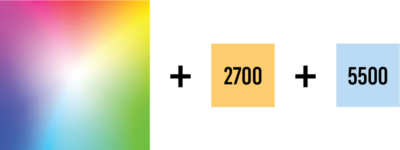

Color Temp

cct

The Scout Advantage

surfacepowdercoat
scoutlock
feedoptions 1

Custom Colors

Powder Coat any Scout Fixture to any RAL #
Your Fixture. Your Design. Customized.

Scout_Lock

Scout fixtures come completely preassembled.

All the installers need to do is simply slide them together.

New power feeds can be injected anwhere.

Never have a break in light!

Feed Options

Scout fixtures come completely preassembled.

All the installers need to do is simply slide them together.

New power feeds can be injected anwhere.

Never have a break in light!

Lens + Optics

flatfrosted

Flat Frosted Visible Hot Spots

5% Loss of Light
CCT Shift : -30K
Part # FF

flatmilky

Flat Milky No Visible Hot Spots

5% Loss of Light
CCT Shift : -30K
Part # FF

grazer

10x60 Grazer

flatcandela
flatcandela
grazercandela

Mounting

ssmdims

Dimensions

ssm

Surface Mounting Part #SSM

Ships with 1/2″ #4 Screw
Use #1 Phillips Bit Driver

ssmmag

Magnetic Mouting Part #SSMMAG

ssmtilt

Tiltable Stand Part #SSMTILT
